Outdoor PoE Extender 1 to 3

Description

Outdoor PoE Extender

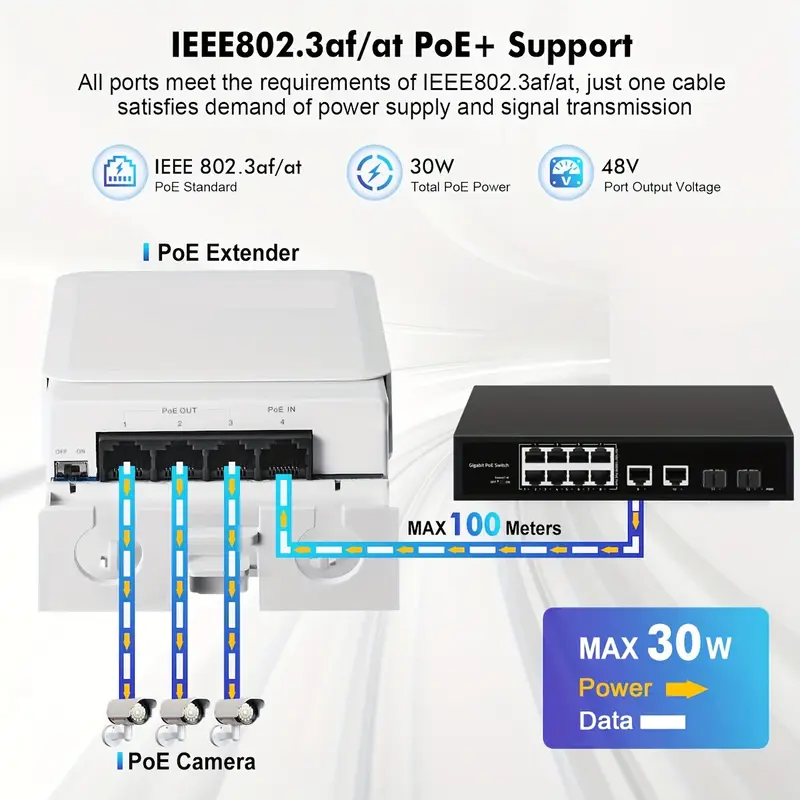

4 PoE Ports: Include 1 PoE In, 3 PoE Out, 10/100Mbps speed. POE transmission distance 100 meters.
IEEE 802.3 af/at:
All ports support this standard PoE, Input Max 30W, Output Max 24W, Average 8W per port.
PoE Voltage 44-57 Vdc. PoE pin: Input, 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output: 1/2 (+), 3/6 (-).
Unmanaged Plug & Play:
Support power detection function, automatically detect devices, just plug in the ethernet cable, connect directly to the device, without configuration.

Easy Installation: No need for additional power adapter, powered by POE network.
Widely Used: Support 3-level cascading, can connect POE AP, camera, phone and other POE devices, increase POE coverage at low cost

Port based VLAN Feature
Ports 1-3 can be isolated from each other via DIP switch. This can help to prevent IP camera broadcast storms from effecting each other.
