U-shaped Smart Clamp Meter

ANENG PN129 Clamp Meter U-shaped Smart 4000 Counts Multimeter AC/DC 600V Voltage Current Resistance NCV Sensing Test Tools
Features:
LCD display: 4000 counts
Polarity indication: DC voltage automatically displays a “-” sign, positive polarity defaults
Overload indicator: Only display “OL”
Power requirement: AAA*2(without shipment)
Range selection: automatic
Operating temperature: 0~40 ℃, humidity less than 80%
Storage temperature: -10~50 ℃, humidity less than 85%

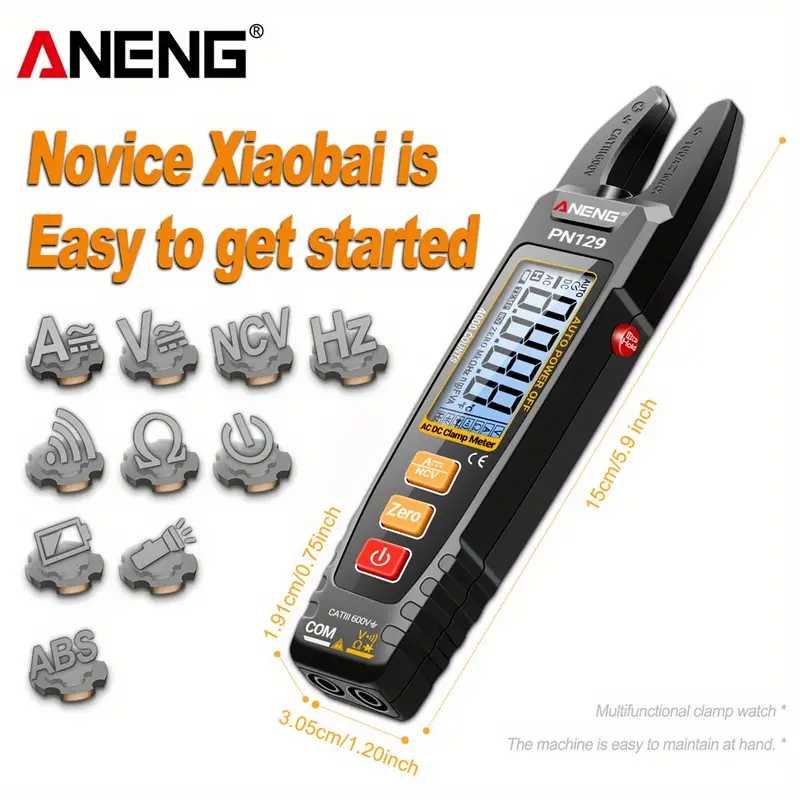

Product dimensions: length 16x 3.5 x 2.5cm(L x W x T)
Product weight: approximately 67.4g
Specifications:

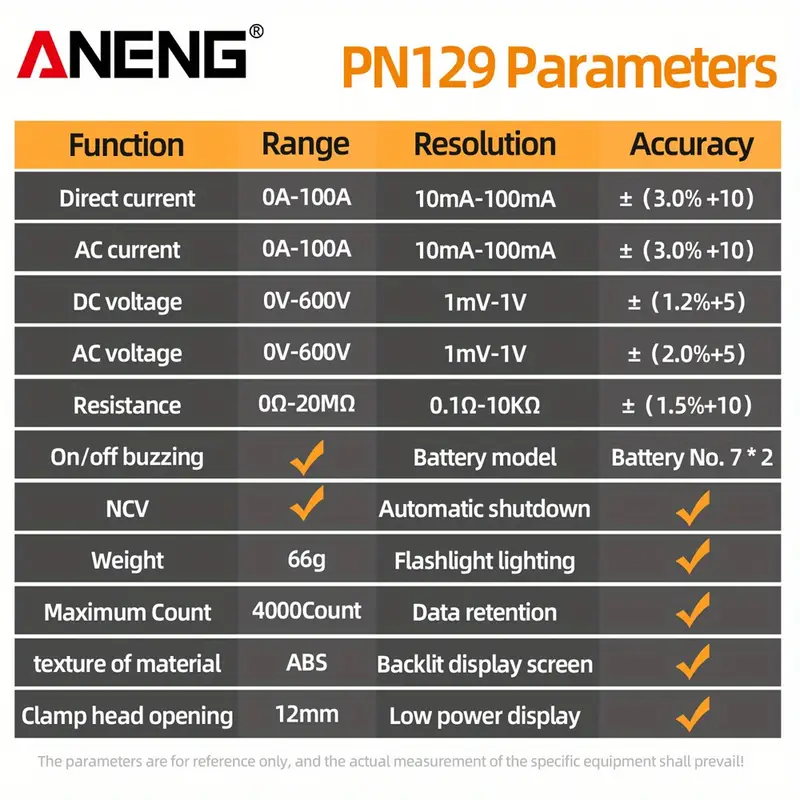

PN129 Technical parameter
Function Range Resolution Precision
DC current 0A-100A 10mA-100mA ±(3.0% of rdg+10d)
AC current 0A-100A 10mA-100mA ±(3.0% of rdg+10d)
DC voltage 0V-400V 1mV-100mV ±(1.0% of rdg+5d) 600V 1V ±(1.2% of rdg+5d)
AC voltage 0V-400V 1mV-100mV ±(1.5% of rdg+5d) 600V 1V ±(2.0% of rdg+5d)
Resistance 0Ω 0.1Ω ±(1.5% of rdg+10d)

4KΩ-4MΩ 1Ω-1KΩ ±(1.0% of rdg+10d)
20MΩ 10KΩ ±(1.5% of rdg+10d)

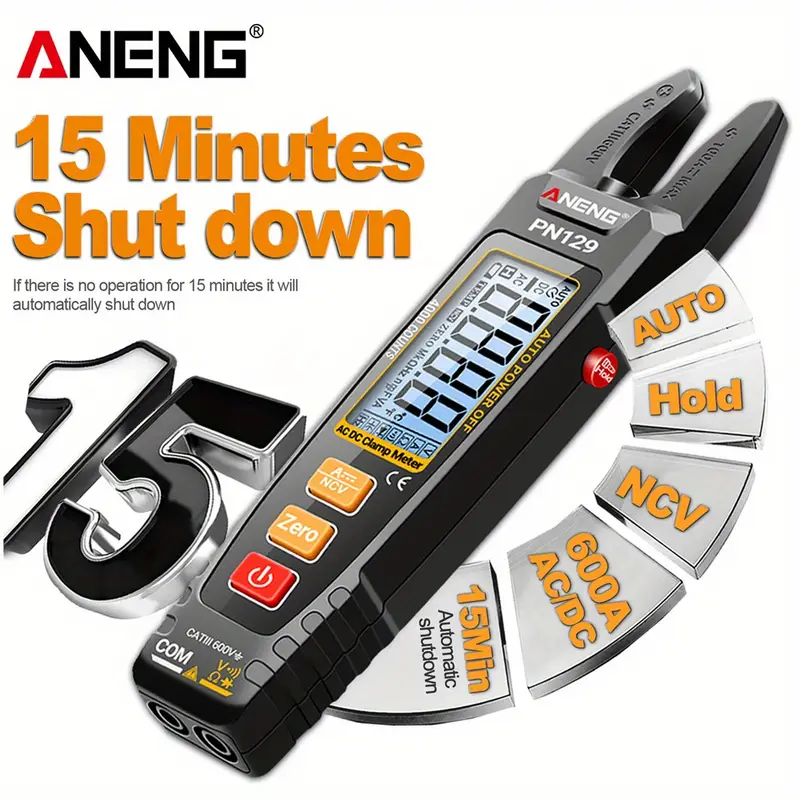

Test on and off beep √ Automatic shutdown After 15 minutes
NCV voltage detection √ Battery model AAA*2 (without shipment)
Low power display √ Flashlight lighting √ data retention √ Maximum count 4000 Count LCD backlit display √ Material ABSPackage List:

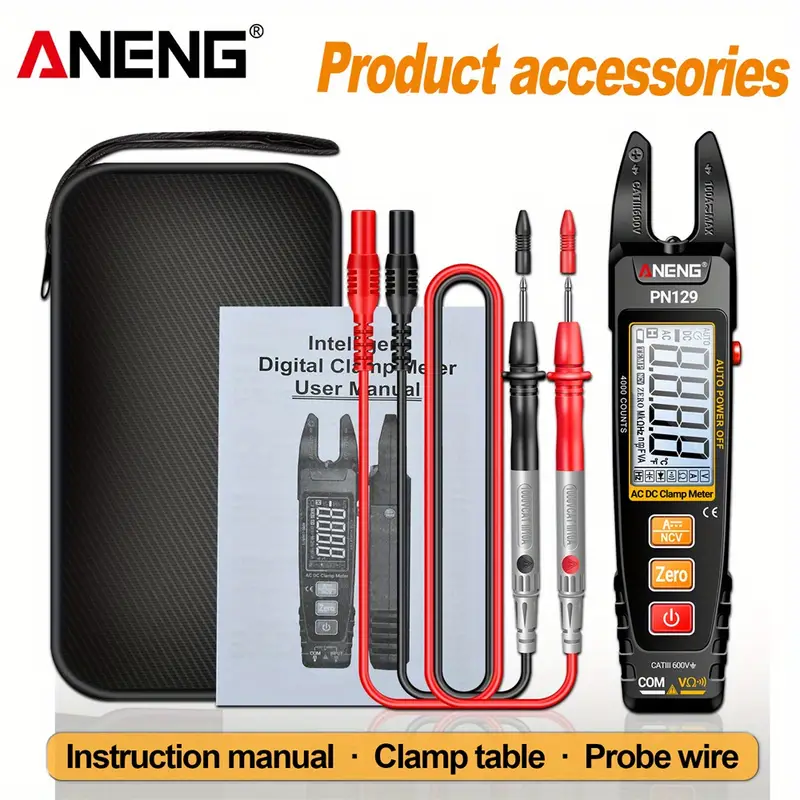

1 * Packing box
1 * Storage bag
1 * English & Chinese Manual
1 * Clamp watch
1 * Watch pen line

Usage Precautions:
1. Do not touch the probes directly with your hands to avoid electric shock and ensure personal safety during testing.
2. Before use, inspect the test probes to ensure there is no damaged insulation or exposed metal.
3. Do not use the current and voltage ranges interchangeably to prevent damage to the instrument.
4. It is best to remove the batteries when not in use for a long time to prevent battery corrosion of other internal components of the instrument.

5. If you do not know the magnitude of the voltage or current to be measured, start with the highest range and then select the appropriate range based on the measured value.
